el_uart.h File Reference

#include "el_common.h"

Go to the source code of this file.

Macros
#define	EL_UART_1   0
#define	EL_UART_2   1
#define	EL_UART_BLUETOOTH   EL_UART_1

Functions
void	el_uart_use_reset_code (el_bool k, el_int8 x)
	Setup a value that: upon receiving that value, reset the chip. More...
void	el_uart_send_char (el_index ch, char c)
	Send one byte of data to the serial channel. More...
void	el_uart_send_string (el_index ch, const char *str)
	Send a string (an array of char terminated by a null) to the serial channel. More...
bool	el_uart_is_sending (el_index ch)
	Check whether the transmission issued in the last sending function is finished. More...
el_uint16	el_uart_get_char_counter (el_index ch)
	Check how many bytes are received and buffered in the channel. More...
char	el_uart_get_char (el_index ch)
	Take out one byte from the receiving buffer in order of first-in-first-out. More...
void	el_uart_flush_char (el_index ch)
	Totally clear up the receiving buffer of a serial channel. More...
el_uint16	el_uart_get_string (el_index ch, char *buf, el_uint16 buf_size, el_bool return_line)
	Get a string ended with a null (0 or '\0') or a carriage-return ('\r', (the "Enter" key). More...
char	el_uart_peek_first_char (el_index ch)
	Check the first byte in the receiving buffer, but does not remove it from the buffer. More...
char	el_uart_peek_last_char (el_index ch)
	Check the last byte in the receiving buffer but do not remove it from the buffer. More...
void	el_uart_erase_last_char (el_index ch)
	Remove the last byte received in the receiving buffer. More...

Detailed Description

Author

Jianing Chen

Function Documentation

void el_uart_use_reset_code	(	el_bool	k,
		el_int8	x
	)

Setup a value that: upon receiving that value, reset the chip.

Parameters

k	whether to use such a feature or not
x	the value that triggers a hardware reset

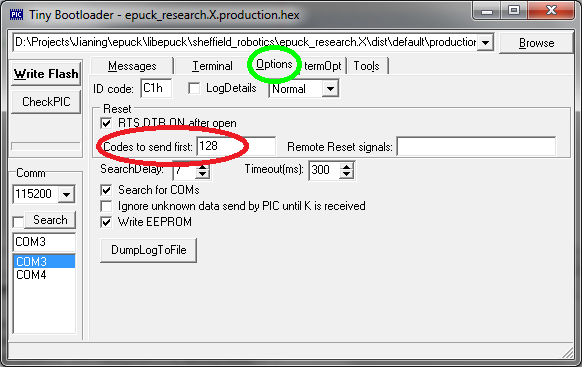

The Tiny Bootloader will first send a specific value to the UART bus shortly before a microcontroller programming. After that, the microcontroller needs to be reseted in a short time window. This reset code feature let the microcontroller reset itself automatically once the value occurs. The image below shows the setting in the TinyBootloader when the code is 128 (used in the examples of this lib).

void el_uart_send_char	(	el_index	ch,
		char	c
	)

Send one byte of data to the serial channel.

Parameters

ch	serial channel index (at present, only 0 is effective)
x	the value to be sent

Note: the return of this function does not necessarily mean the transmission is finished. To determine whether the transmission is still undergoing, use el_uart_is_sending.

void el_uart_send_string	(	el_index	ch,
		const char *	str
	)

Send a string (an array of char terminated by a null) to the serial channel.

Parameters

ch	serial channel index (at present, only 0 is effective)
str	pointer to the string to be sent

Note: the return of this function does not necessarily mean the transmission is finished. To determine whether the transmission is still undergoing, use el_uart_is_sending.

bool el_uart_is_sending

(

el_index

ch

)

Check whether the transmission issued in the last sending function is finished.

Parameters

ch	serial channel index (at present, only 0 is effective)

Returns

Boolean value of "is still sending or not"

el_uint16 el_uart_get_char_counter

(

el_index

ch

)

Check how many bytes are received and buffered in the channel.

Parameters

ch	serial channel index (at present, only 0 is effective)

Returns

the number of bytes received and buffered

char el_uart_get_char

(

el_index

ch

)

Take out one byte from the receiving buffer in order of first-in-first-out.

Parameters

ch	serial channel index (at present, only 0 is effective)

Returns

the byte

void el_uart_flush_char

(

el_index

ch

)

Totally clear up the receiving buffer of a serial channel.

Parameters

ch	serial channel index (at present, only 0 is effective)

el_uint16 el_uart_get_string	(	el_index	ch,
		char *	buf,
		el_uint16	buf_size,
		el_bool	return_line
	)

Get a string ended with a null (0 or '\0') or a carriage-return ('\r', (the "Enter" key).

Parameters

ch	serial channel index (at present, only 0 is effective)
buf	pointer of a buffer to store the received string
buf_size	size of the given buffer, which gives a limit to the length of the string received
return_line	finish the string once (1) a carriage-return, (0) a null is received.

Returns

length of the string

The null char received at last is not notable as a string in C is always terminated by a null. In case of ending with a carriage-return, the carriage-return itself will be placed in the string and followed by a null that terminates the string as usual.

char el_uart_peek_first_char

(

el_index

ch

)

Check the first byte in the receiving buffer, but does not remove it from the buffer.

Parameters

ch	serial channel index (at present, only 0 is effective)

Returns

value of the first byte

char el_uart_peek_last_char

(

el_index

ch

)

Check the last byte in the receiving buffer but do not remove it from the buffer.

Parameters

ch	serial channel index (at present, only 0 is effective)

Returns

value of the last byte

void el_uart_erase_last_char

(

el_index

ch

)

Remove the last byte received in the receiving buffer.

Parameters

ch	serial channel index (at present, only 0 is effective)
